Description
Features
Fast Heat-Up, Fast-Recovery, Stable Control
6 Sides Direct Heating System
Electric Heating wire is covered on all sides of the chamber which makes stable uniformity and provides fast heat-up & temperature recovery.
3 parts of the heating section are controlled and calibrated individually by 3 temperature sensors.
Dry Wall and Air Jacket
Warm Air from the heating wire is preserved in space between chamber and insulation. It helps
temperature recovered faster and minimize heat loss.
Drywall with insulation is not required to regular maintenance.
DUAL BEAM IR C02 Sensor
Fast & Precise Detection for C02 gas regardless of temperature and humidity.
Natural Humidication using Water Tray
The heater on the bottom side warm the water in the tray and it makes
humidification. Circulation fan delivers the moisture formed from the water in the entire chamber.
No Condensation
Heating by front door heater & frame heater prevents condensation in the chamber and on the glass door.
Microprocessor PID Control
Intelligence Control for C02 density, Temperature, Alarm, Automatic Decontamination(Optional).
HEPA filtration of gas supply inlets
Various Option
a various option such as decontamination, Oxygen Control is available in C02 incubators

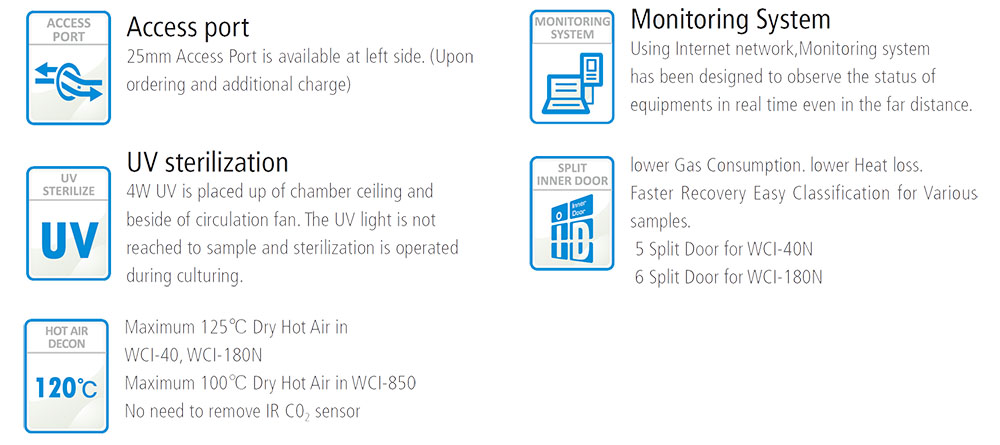

Options
Customize your incubator with these options
Incubators / Ovens / Shakers / Shaking Incubators
Features
Fast Heat-Up, Fast-Recovery, Stable Control
6 Sides Direct Heating System
Electric Heating wire is covered on all sides of the chamber which makes stable uniformity and provides fast heat-up & temperature recovery.
3 parts of the heating section are controlled and calibrated individually by 3 temperature sensors.
Dry Wall and Air Jacket
Warm air from the heating wire is preserved in space between chamber and insulation. It helps
temperature recovered faster and minimize heat loss.
Drywall with insulation is not required for regular maintenance.
DUAL BEAM IR C02 Sensor
Fast & Precise Detection for C02 gas regardless of temperature and humidity.
Natural Humidication using Water Tray
The heater on the bottom side warm the water in the tray and it makes
humidification. Circulation fan delivers the moisture formed from the water in the entire chamber.
No Condensation
Heating by front door heater & frame heater prevents condensation in the chamber and on the glass door.
Microprocessor PID Control
Intelligence Control for C02 density, Temperature, Alarm, Automatic Decontamination(Optional).
HEPA filtration of gas supply inlets
Various Option
a various option such as decontamination, Oxygen Control is available in C02 incubators
Options
Customize your incubator with these options
Incubators / Ovens / Shakers / Shaking Incubators
Specifications
| Model | WCI-180N | |
| Chamber volume（L） | 180 | |
|
Temp.℃
|
Range | Ambient+5~60 |
| Accuracy | ±0.1℃ （37℃） | |
| Resolution | 0.1℃ | |
| Control | Digital PID | |
| Uniformity | 0.3℃（37℃） | |
|
CO2
|
Range | 0% ~ 20% |
| Accuracy | ±:0.1% （ 5% 37℃） | |
| Resolution | 0.1% | |
| Sensor | IR C02 Sensor | |
| Control | Microprocessor | |
| Inlet pressure range | 0.3~0.5bar | |
| Display | LED Display | |
| Operating panel | Individual 2 Channel Touch Button | |
| Jacket type | Dry Wall Type (6 sides heat)） | |
| Chamber material | Stainless Steel (316) | |
| Number of shelves | 3/8 | |
| Chamber dimension（WxDxH） | 473x528x710mm | |
| Overall dimension（WxDxH） | 560x665x945mm | |
| Weight（kg） | 79.5 | |
| Order No. | 189122N | |
Accessories about the CO2 Incubators
| Order No. | Name | Description |
| 189131 | Holes for auxiliary monitoring | The diameter of 25mm, on the left side of the incubator |
| 189132 | O2 Controller | Oxygen Control Option(0.5% ~ 19% or 22% ~ 99%） |
| 189133 | UV sterilization unit | 4W UV lamp. Install the side of the top fan |
| 189134-01 | Dry heat sterilization unit | 125’C Hot Air Sterilization for 40 Liter Incubator, WCI-40N |
| 189134-02 | Dry heat sterilization unit | 125’C Hot Air Sterilization for 180 Liter Incubator, WCI-180N |
| 189139-01 | Glassdoor | For WCI-40N（five regions） |
| 189139-02 | Glassdoor | For WCI-180N（six regions） |
| 189138 | CO2 Regulator | ③ CO2 Regulator |
| 189140 | CO2 Analyzer | ② CO2 Analyzer |
| 189141-01 | Shelves | SHELVE for WCI-40N |
| 189141-02 | Shelves | SHELVE for WCI-180N |
| 189142-01 | Roller Base | ④ Table for WCI-40N, Height 20cm from Bottom |
| 189142-02 | Roller Base | ④ Table for WCI-180N, Height 20cm from Bottom |
| 189143-01 | Stacking Kit | for WCI-40N |
| 189143-02 | Stacking Kit | for WCI-180N |
Features
* 15.2 Liter Chamber
* 6.8 kg Light Weight to carry
* Portable Use with carrying handle (Car Plug available)
* Economical Price & Compact Design for Personal Use
* Available size to use in the work station or Clean bench
* Digital Set-Up for Temperature & C02
* Forced Air Circulation by Fan
* Excellent Temperature Uniformity
* Quick recovery & Precise C02 control by IR Sensor
* Cooling with very low noise
* – Two Stainless Steel Shelves (Standard)
* – Natural Humidification by Water Pan
* Cooling & Heating by Peltier
* Stainless steel Water Tray
* Power Plug & Car Jack
Specifications
| Product Name | WCI-15R | |
| Chamber Volume | 15.2 liter | |
| Temperature | Range | 15℃ ~ 45℃（at Ambient 25℃） |
| Accuracy | ±0.1℃ | |
| Control | Micom | |
| CO2 | Range | 0 ~ 20% |
| Sensor | Dual Beam IR Sensor | |
| Accuracy | ±0.1%（5%） | |
| Gas Pressure | 0.7Bar (Max.1Bar) | |
| Humidity | Up to 80% | |
| Display | LED Display | |
| Cooling & Heating | By Peltier (thermoelectric elements) | |
| Shelf | 2, Stainless steel (standard) / Max (3ea) | |
| In & Outside Material | ABS | |
| Inside（W x Dx H mm） | 224x 200 x 340 | |
| Outside（W x Dx H mm） | 292x 333x 433 | |
| Weight | 6.8Kg | |
| Power / Frequency | 220V , 50/60Hz | |
| Power Consumption | DC-COLD: 46W, HOT: 48W | |
| AC-COLD: 63W, HOT: 63W | ||
| Order No. | 189221 | |
Accessories & Options
| Order No. | Name | Model |
| 189231 | Shelf ( Stainless steel ) | 203M-SHELFSUS |
| 189232 | Measuring opening | 203M-Hole |
