Description

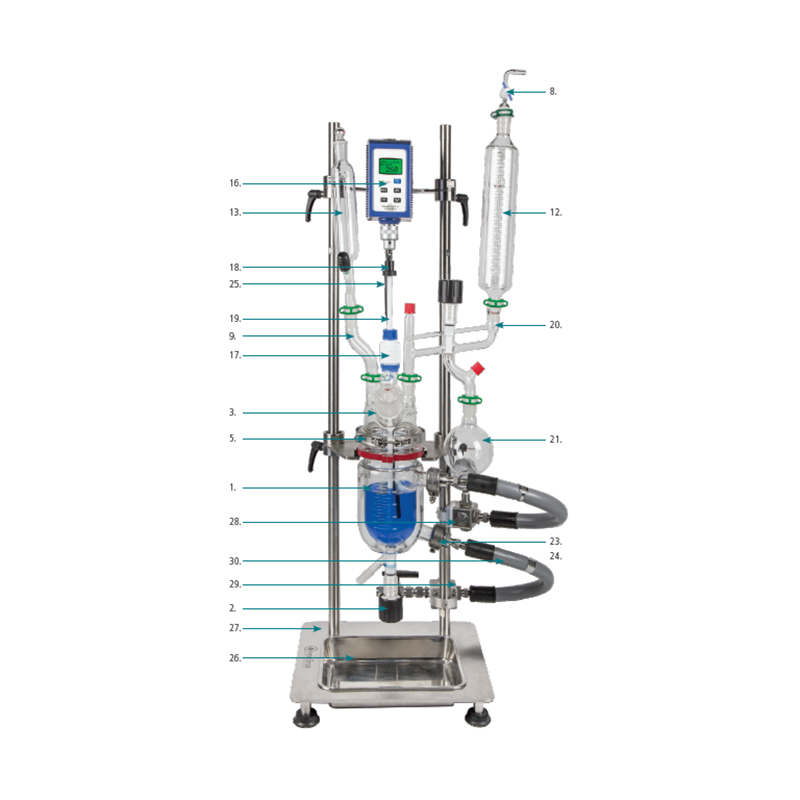

NEW Benchtop reactors are complete with benchtop stand, overhead stirrer, and glassware. Available with the optional manifold connection and heat transfer fluid draining system. The unique design of the Benchtop reactors support stand and clamping system allows for quick and easy installation/removal of glassware and fits into most benchtop hoods. The system is supplied complete with the components listed below and numbered on the image below. Items in black are supplied with both systems.
250ml complete benchtop reactors
| Part number | Description |
| JRS-1500-021 | 250mL Process System, Complete with Glassware & Stand, Digital Overhead Stirrer |
| JRS-1500-022 | 250mL Process System, Complete with Glassware, Stand, and OHS.4 High Torque Overhead Stirrer |
250ml complete benchtop reactors with manifold
| Part number | Description |
| JRS-1500-021M | 250mL Process System, Complete with Glassware & Stand, Manifold / Drain System and Digital Overhead Stirrer |
| JRS-1500-022M | 250mL Process System, Complete with Glassware, Stand, Manifold / Drain System and OHS.4 High Torque
Overhead Stirrer |
| No. | Order No. | Product Description | Qty |
| 1 | TRGN 7166 | 250mL Flask, Cylindrical, Jacketed, 60mm Flange,Drain Valve 0-10mm | 1 |
| 2 | JRS-3103-02 | Bottom valve, dead volume, 0~10mm | 1 |
| 3 | JRS-6443-02 | Lid, 60mm, 5 Neck, 24/40 CN, (3) 14/20 SN, (1) 24/40 SN | 1 |
| 4 | JRS-1701-01 | 60mm PTFE Encapsulated O-Ring | 1 |
| 5 | JRS-2401-02 | Clamp, Flange, 60mm | 1 |
| 6 | 292402807 | Cap, Solid, GL45 | 1 |
| 7 | 292401108 | Cap, Solid, GL18 | 1 |
| 8 | JRS-2012-01 | Vacuum Adapter, 24/40 | 1 |
| 9 | JRS-2020-01 | Offset Adapter, 24/40 | 2 |
| 10 | JRS-8255-10 | Stopper, 14/20 | 2 |
| 11 | JRS-8250-12 | Stopper, 24/40 | 1 |
| 12 | JRS-5028-27 | Temperature Sensor Adapter, O.D.=7mm, 14/20 | 1 |
| 13 | JRS-2506-01 | Condenser, Coil, Jacketed, 300mm,24/40 | 1 |
| 14 | JRS-2004-05 | Adapter, enlarging, outer joint 24/40, inner joint 14/20 | 2 |
| 15 | JRS-2803-01 | Funnel, Addition, 60mL, 0-4mm Metering Valve, 24/40 Joints | 1 |
| 16 | JRS-7643-109 | PTFE Sleeves,14/20 | 1 |
| 17 | JRS-7643-108 | PTFE Sleeves,24/40 | 1 |
| 18 | JRS-7598-20 | Keck Clip, 14/20 | 1 |
| 19 | JRS-7598-24 | Keck Clip, 24/40 | 1 |
| 20 | CR3090.02 | OHS.2 Stirrer | 1 |
| 21 | 5.104.7 | 8mm PTFE/PEEK Stirring bearing | 1 |
| 22 | JRS-3006-00 | 8mm Shaft Coupling | 1 |
| 23 | 5.240.8.2 | Screw Propeller, 4-Bladed (PTFE Coated), Shaft Ø8mm, L=400mm, Rotor Ø40mm | 1 |
| 24 | JRS-2619-01 | Distillation Reflux / Divider Head Claisen Style | 1 |
| 25 | JRS-6887-220 | 50mL Flask, Single Neck | 1 |
| 26 | JRS-11081-21 | Clamp Holder, Pilot Plant (Condenser Clamp, Flask Clamp) | 2 |
| 27 | JRS-2009-01 | Adapter, Stainless Steel, M16x1 Male to 1in Beaded Pipe, 1 piece | 2 |
| 28 | JRS-2405-01 | 1in Beaded Pipe Coupling, 1 piece | 2 |
| 29 | 8981015 | 300x6mm, SS/PTFE, 3m cable | 1 |
| 30 | JRS-6001-01 | 305 x 280mm Stainless steel liquid plate | 1 |
| 31 | JRS-2602-01 | Smart Supporting Structure | 1 |
| Optional | |||
| 32 | JRS-6101-000 | Multi-channel regulating valve outlet | 1 |
| 33 | JRS-6102-000 | Multi-channel regulating valve inlet | 1 |
| 34 | 8930220 | 0.5 m Metal tubing, insulated, 2 fittings M16x1 female (-50…+200 ℃ ) | 2 |
Please send your enquires to [email protected] for the other volumes
